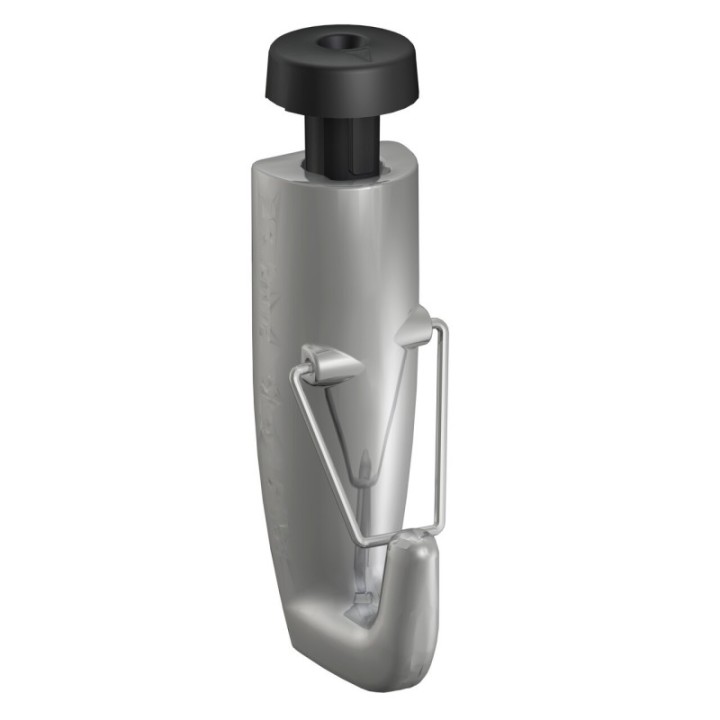

Newly H70 Self-locking Autogrip-Lock Hook

The H70 autogrip lock hook is specially designed for hanging heavy works of art combined with the steel cable 2.5mm Twister Lock and the R70 Museum Line rail. This hook can only be used in combination with the steel wire 2.5mm Twister Lock. A robust hook with a carrying capacity of no less than 70 kg, equipped with a safety and auto lock function for an extra bit of security.

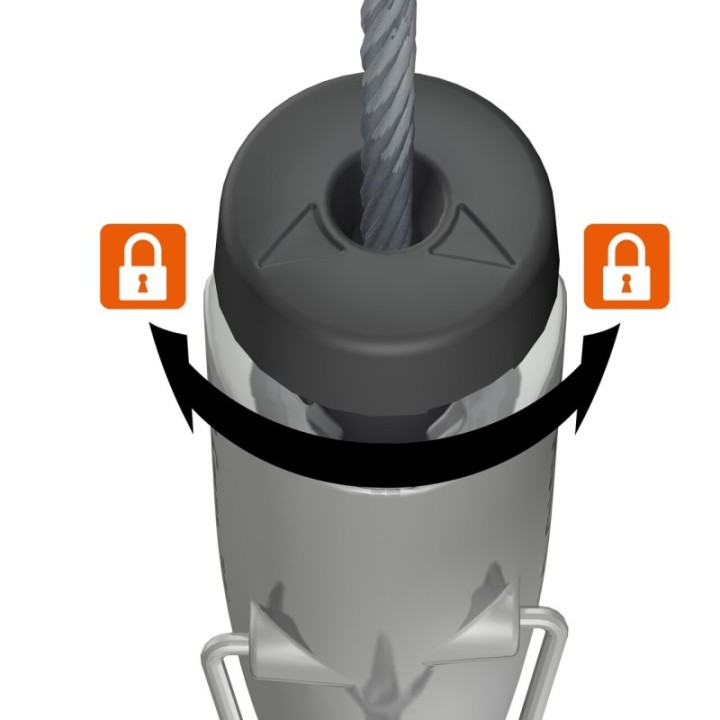

To adjust the hook, press the button. By then turning this knob to the left or right, it is locked again. It is recommended to use two 2.5mm steel wires and two H70 hooks for heavier paintings and objects. When using two wires and hooks, the maximum carrying capacity is 100kg.

Only to be used in combination with the 2.5mm Twister lock stake cable.

If smaller works also have to be hung on the R70 during an exhibition, the standard 2.0mm Perlon or 1.8mm steel cable in combination with the Newly H50 or H100 hooks offer a good solution. This prevents the smaller works on the Newly steel 2.5mm from having too much play and from rocking or tilting.

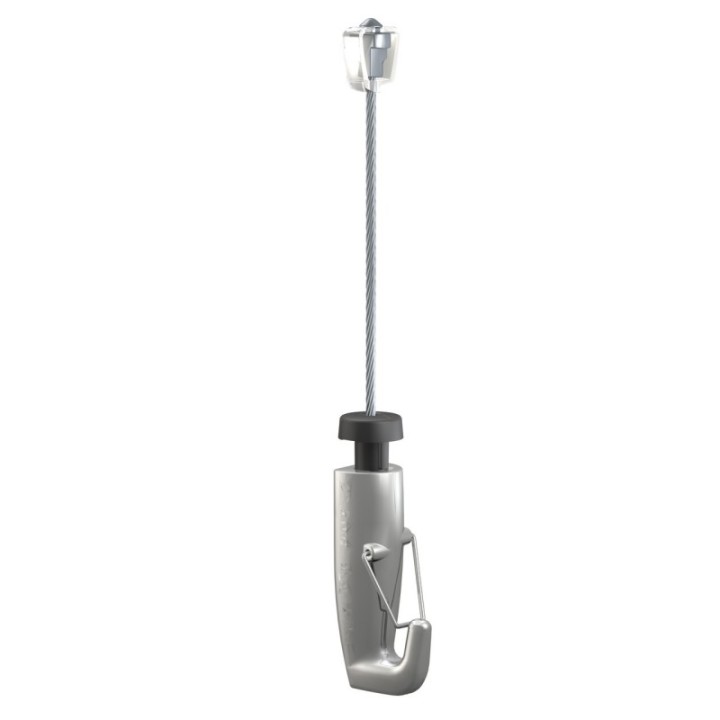

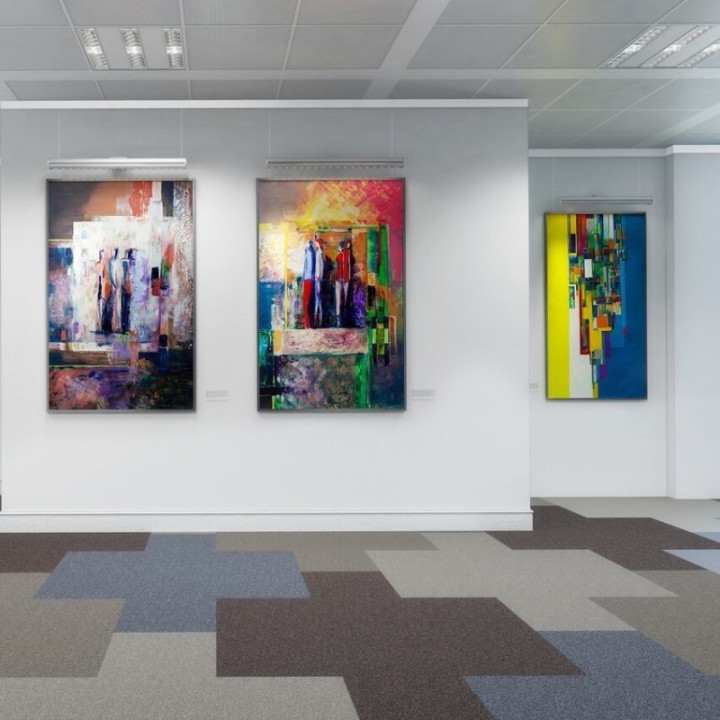

Newly's exclusive safety hook H70 Auto-Grip Lock has been specially developed for the Newly picture rail R70 Museum Line and is used in combination with the Newly steel cable 2.5mm Twister Lock. This hanging concept is intended for the safe hanging of large and heavy paintings and objects in museums and galleries.

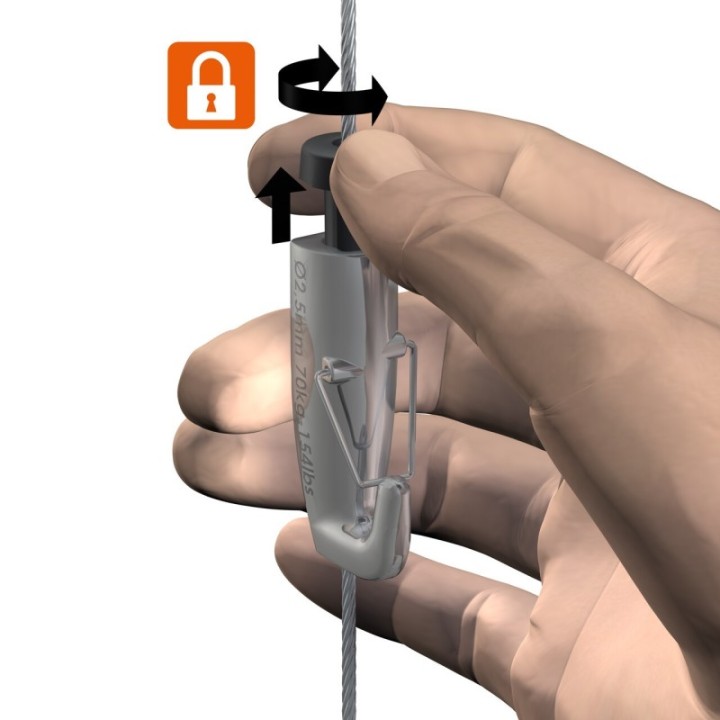

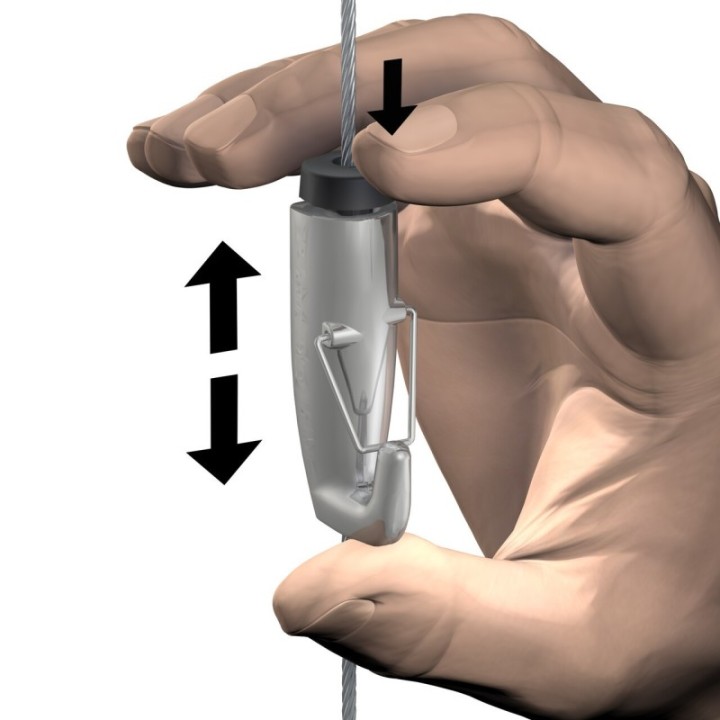

Comfortable handling and high load capacity are combined in this robust safety hook. It has a self-locking mechanism so that it can be attached to the rope at any height. In addition, the autolock function ensures safety. To adjust the position of the hook on the wire, the black flange is pushed down and the hook is moved. When you release the trigger, the hook locks onto the wire. Then additionally lock the hook by turning the flange to the left or right. As a result, the hook always hangs firmly and securely on the wire.

The Newly safety hook H70 Auto-Grip Lock has a maximum load capacity of 70 kg. In combination with the Newly steel cable 2.5mm Twister Lock, the maximum load capacity is 100kg for hanging a painting with 2 suspension wires and 2 painting hooks.

Note: The stated maximum load capacity applies to hanging a picture with 2 suspension cables and 2 picture hooks. The weight of the image must not exceed the specified load capacity, otherwise secure suspension cannot be guaranteed. The load-carrying capacity does not increase by using additional suspension cables or picture hooks! For each suspension, the smallest specified load capacity applies as the maximum weight.

Note: The Newly safety hook H70 can only be used in combination with the Newly steel cable 2.5mm Twister Lock.
