GeckoTeq Franse Cleat Systeem Ophang Rail - per set van 2

Hang acoustic wall panels

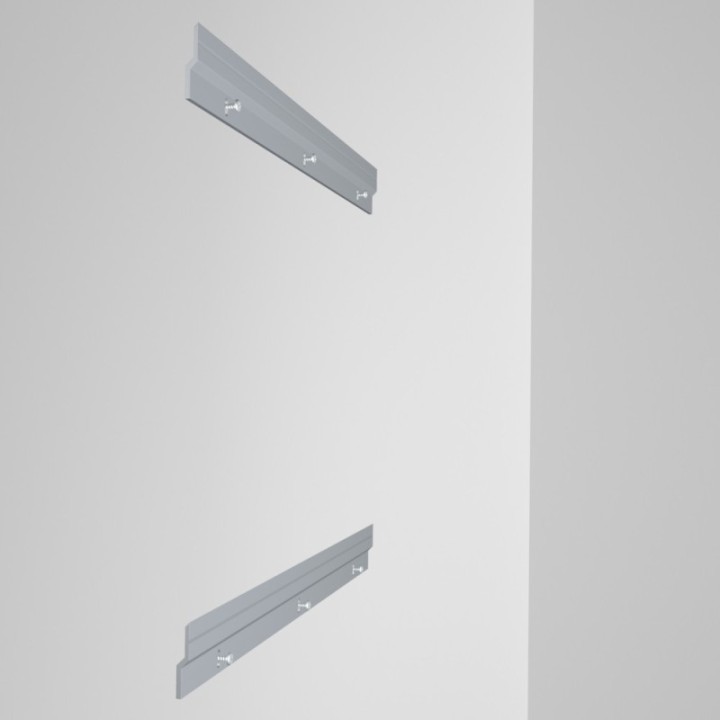

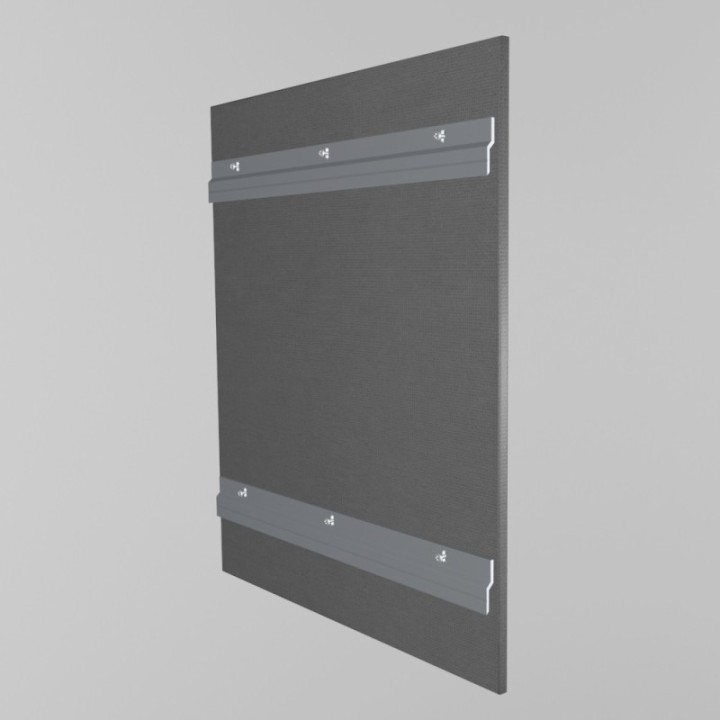

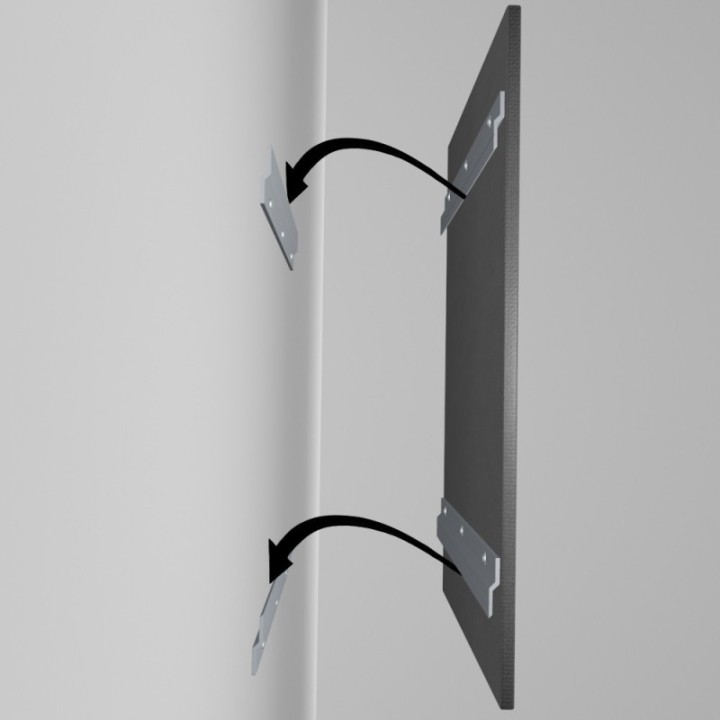

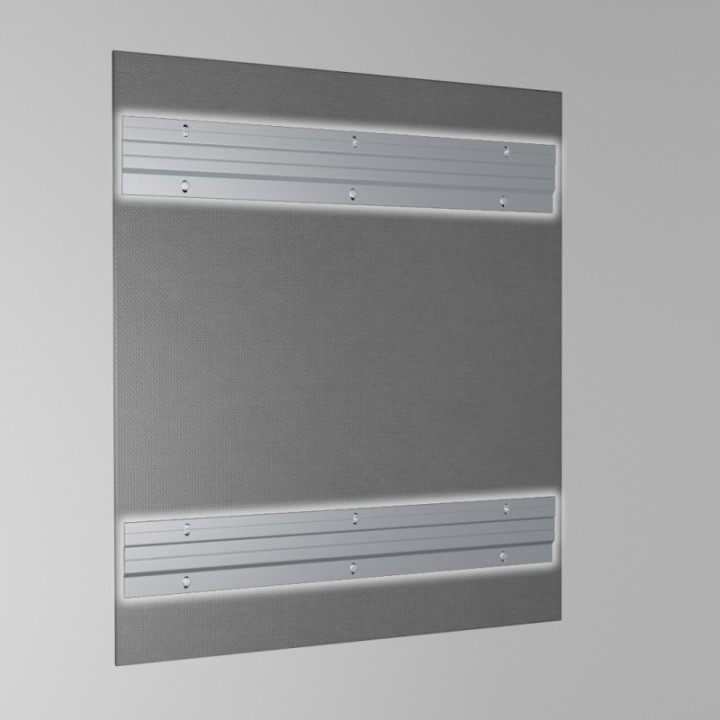

Introducing decorative acoustic panels into an interior space adds to functionality and refreshes aesthetics without the need for major structural intervention. Making a space pleasant from an acoustic point of view and minimizing sound intensity by limiting its propagation means making that environment acoustically efficient. This solution is becoming easier to implement, is valid from an aesthetic point of view and is therefore widely used. Hanging your acoustic panels with our Z-Bar system is very simple. Just take a look at the attached images and you will find out how easy the task will be.

How do acoustic panels work?

Acoustic panels are sound-absorbing elements that are attached to the ceiling. They can be made of different materials and come in different sizes, colors and shapes. The function of acoustic panels is to capture and absorb the sound through design elements, reducing acoustic pollution within an enclosed space.

The term "material sound absorption" refers to the ability of a material to absorb the released sound energy to reduce and eliminate its reflection on the walls. Sound-absorbing panels can be conveniently and easily placed in a variety of environments, from private homes to offices; from public areas such as bars and restaurants to meeting rooms, conference rooms, auditoriums and theatres.

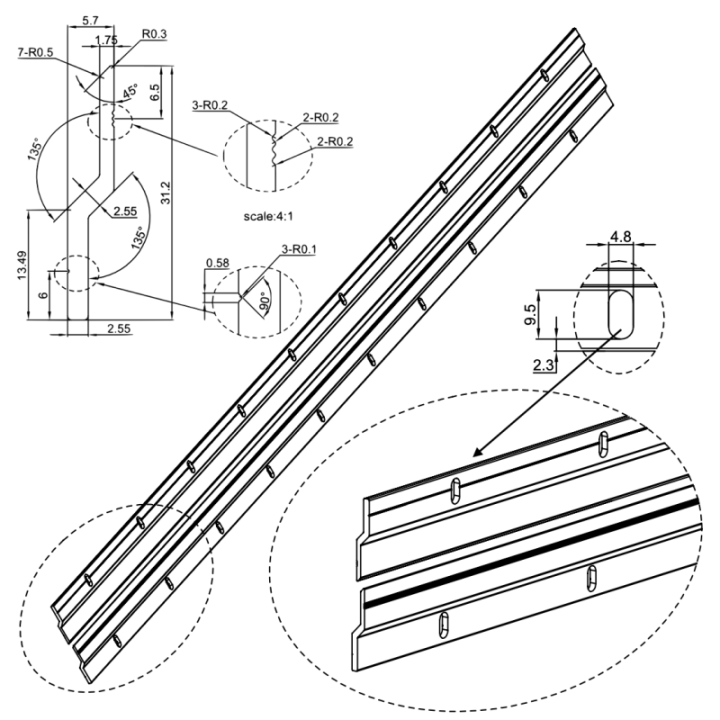

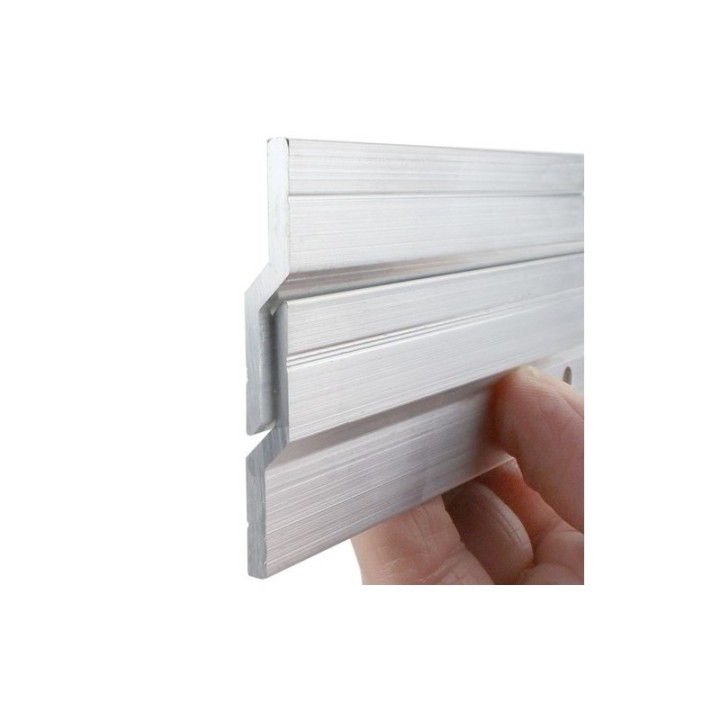

Designed with anti-corrosion technology, this indoor hanging system is available in 3 lengths that you can choose depending on your hanging needs. Made of high quality aluminum, 2.5 mm thick and 30 mm wide with oval screw holes.

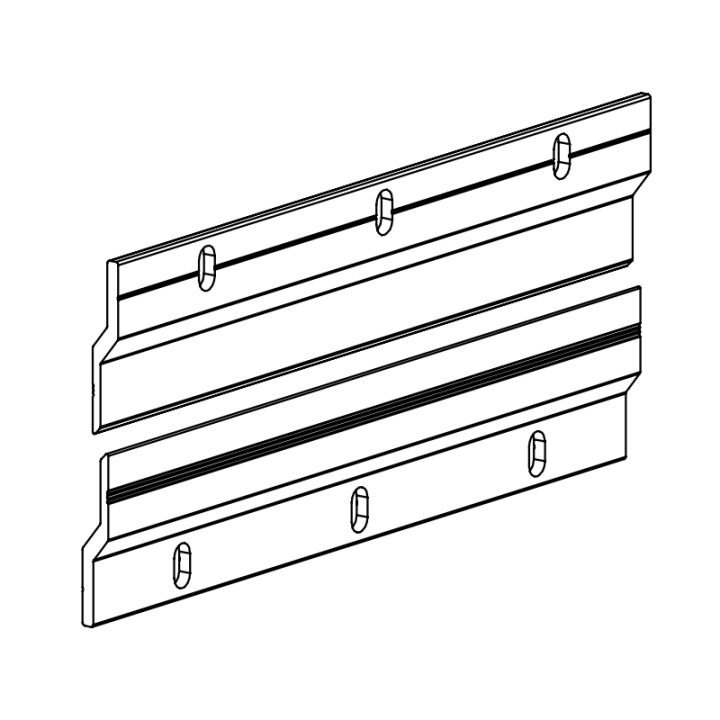

Delivery per pair: 2 aluminum Z-profiles, optionally with screws, plugs and PVC bumpers.

And if they are too long, the aluminum rails can be cut with any carbide saw or hacksaw if necessary. Or use two pairs to hang very large objects.

Please note: the available wall plugs are suitable for solid brick or block wall construction - however, use special plugs for hollow walls or partitions (not available with us). You may also need hollow wall plugs for the panels themselves.

For hanging on sloping walls or ceilings, use both a set at the top and bottom of the object.

Hanging heavy objects becomes even easier with these Z-Bar hangers.

Screw holes per rail length:
  5cm = 2
15cm = 3
30cm = 3
45cm = 5
60cm = 6
100cm = 10
150cm = 15
200cm = 20

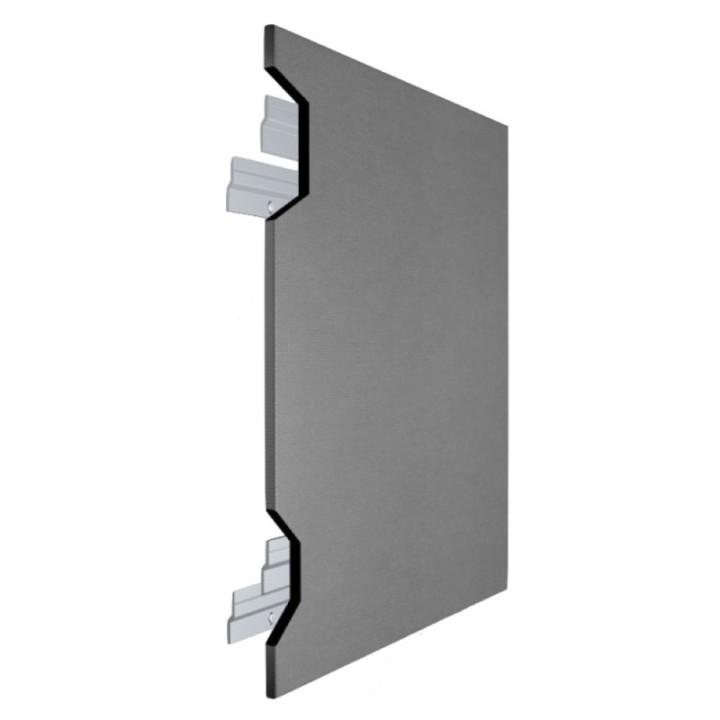

Distance from the wall to the object: 7mm
